PolSNAP

POLSNAPTM

Affordable Stokes polarimeter with all electronics and optics in one compact design.

Request Quote
Request Quote

PolSNAPTM Applications:

• Free Space and Fiber Polarimetry
• Degree of Polarization and State of Polarization Measurements
• Optical Component Alignment
• Fiber Optic Polarization Measurements
• Laser Polarization State

PolSnap-Software

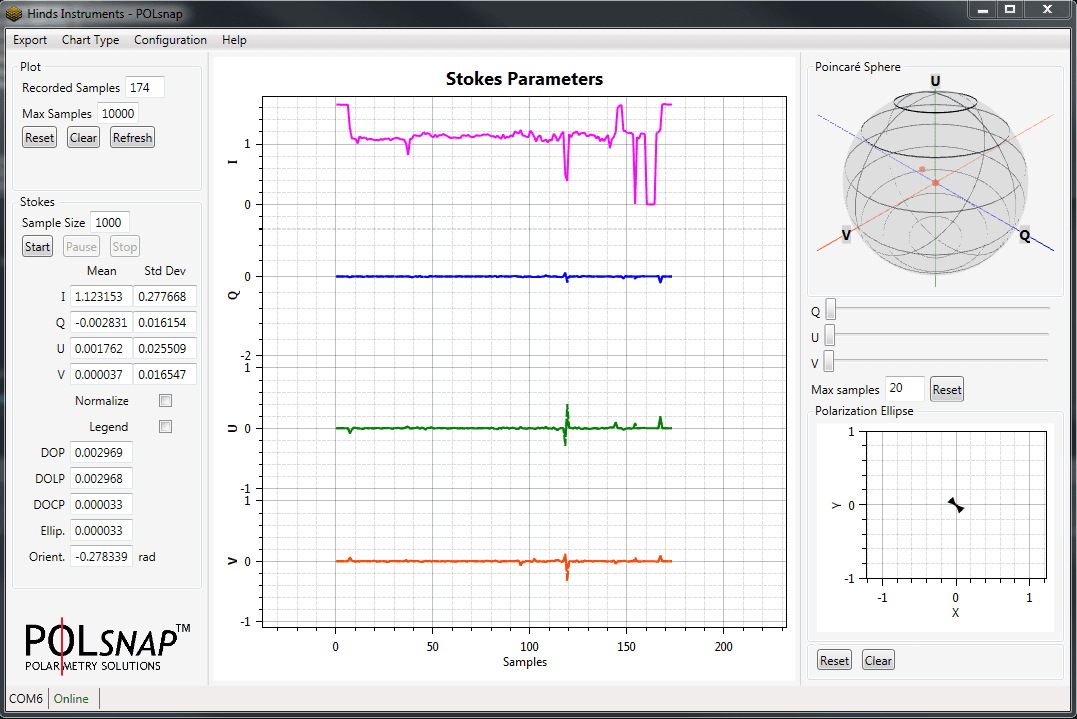

Figure 1. PolSNAPTM Software
PolSNAP-other-side
Figure 2. PolSNAPTM

System Details

Custom configurations and accessories are available for these models. Please contact a representative for more details.

Features
  • Internal optical system, drive electronics and detection electronics.
  • No additional consoles or electronics.
  • Small size - fits in your hand
  • Connected via USB
  • Fast measurement speed: 4 Stokes vectors per second (2000 samples per second).
  • Easy-to-use software - for use with Windows 7 or Windows 10 systems.
  • Mounting options: 30 mm cage mount or 2x M4 / ¼-20 post mount
Specifications
Optical ParametersVIS NIR
Wavelength450 - 700 nm 800 - 1600 nm
Dynamic Range-37 dBm - 3 dBm -34 dBm - 7 dBm
200 nW - 2 mW 400 nW - 5 mW
Sampling RateDefault: 2000 samples/s
Maximum: 2000 samples/s
Stokes VectorsStokes: 4 Stokes Vectors/s
Intensity: 2600/s
Measurable SOP Entire Poincaré Sphere
Azimuth Accuracy± 0.5° ± 0.6°
Ellipticity Accuracy ± 0.5° ± 1.15°
Accuracy± 5% ± 7%
Precision0.06% 0.06%
Free Space Aperture10mm 10mm
Diode Active Area25mm2 20mm2
Input Fiber Connector30 mm Cage Mount
Additional Specifications
Beam AlignmentNo special tools required
Command and Control InterfaceUSB 2.0 Micro / Serial SCPI
Input Power Supply External Power Supply
DS15 Power Supply Ratings24V; 2.71A
Dimensions49 mm x 79 mm x 79 mm
1.9" x 3.1" x 3.1"
Bottom Mounting FeaturesTwo (M4) 1/4-20 Threaded Holes
Weight0.28 kg (0.62lb)
